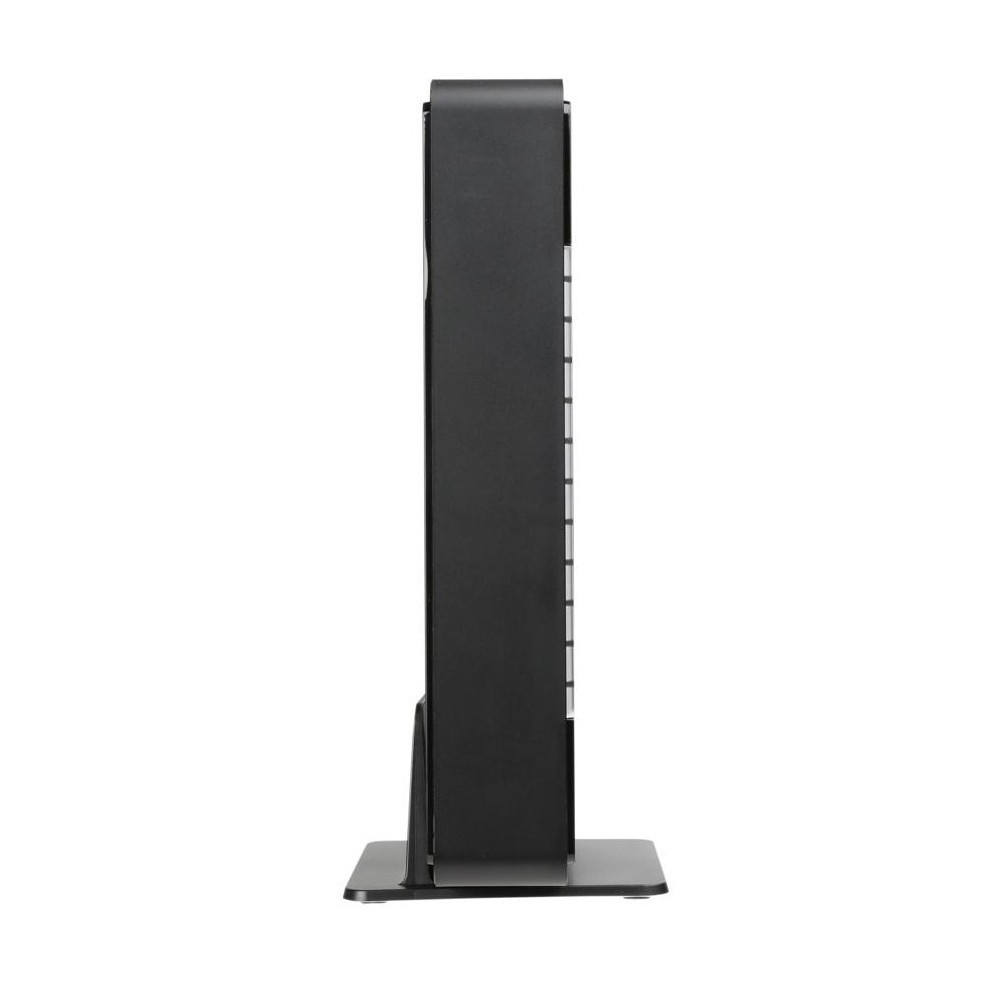

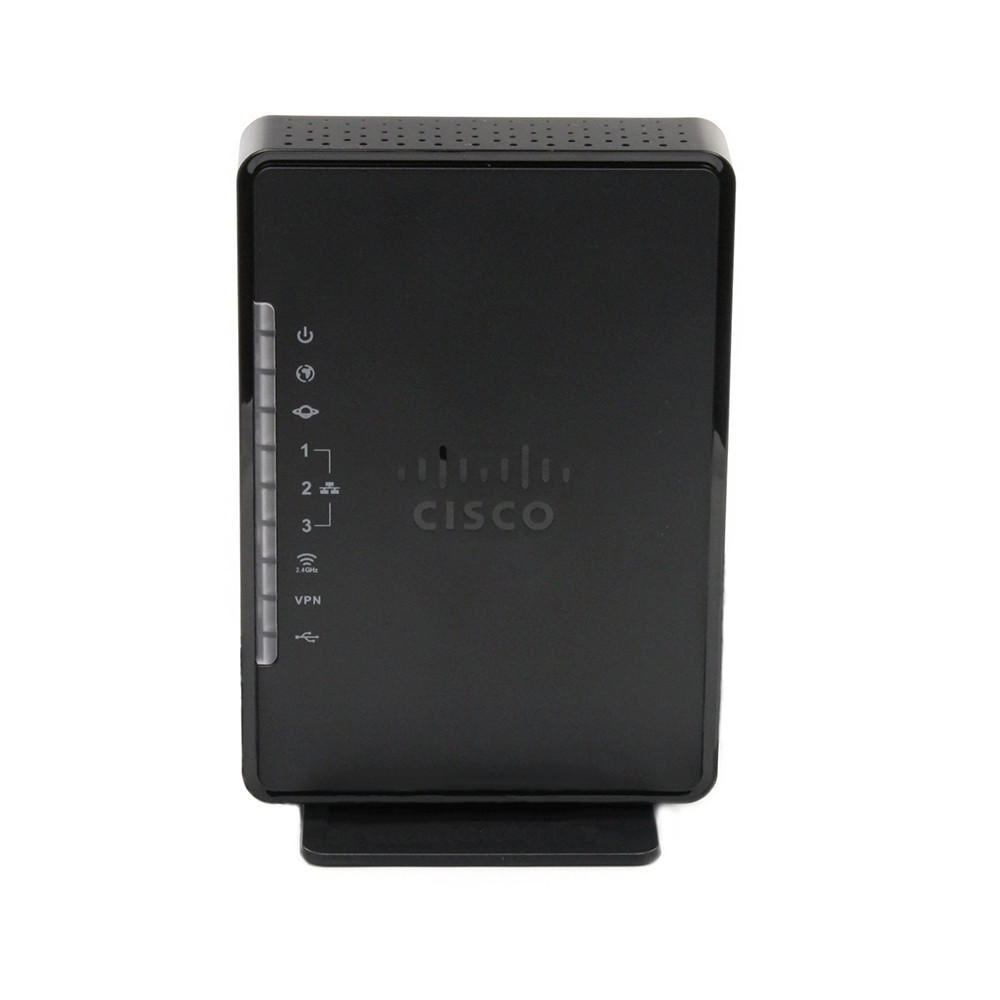

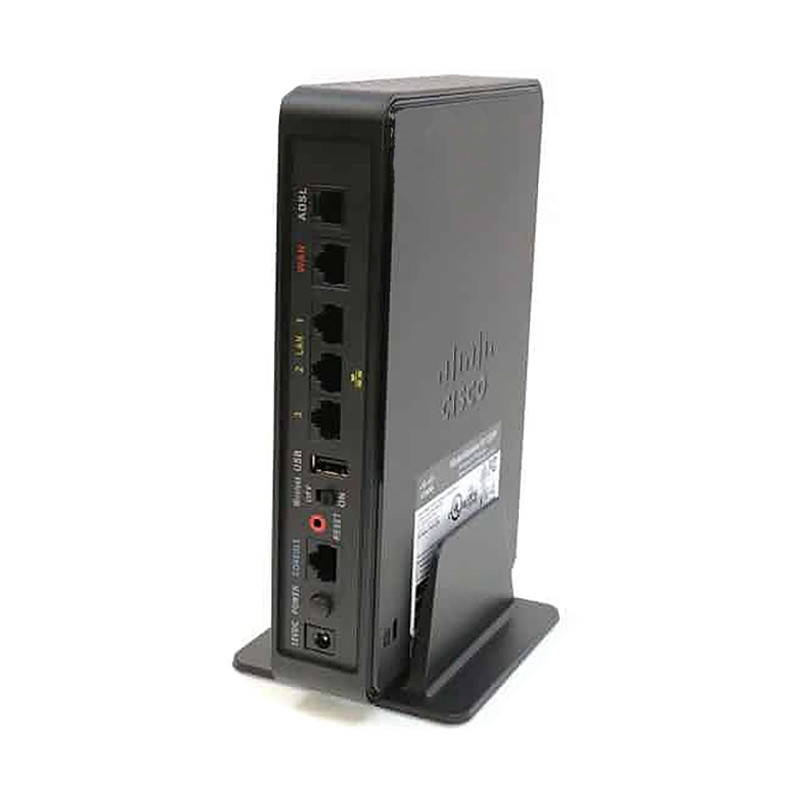

נתב אלחוטי לעסקים קטנים מבית סיסקו – CISCO RV132W Small Business SOHO Modem Router
נתב ה- VPN RVS321 ADSL2 + Wireless-N של סיסקו מציע ביצועים מעולים וקל להתקנה, פריסה ושימוש. ניתן להשתמש בנתב זה בחיבור למודם או שער רגיל Ethernet Wide Area Network (WAN) או ישירות לספק האינטרנט באמצעות חיבור לקו הטלפון Asymmetrical Subscriber Line 2 Plus (ADSL2 +). זה תומך גם בניהול רשת FindIT של סיסקו, המאפשרת לך לנהל מכשירי סיסקו נתמכים, כמו מתגי סיסקו, נתבים ונקודות גישה אלחוטיות. למידע נוסף על ניהול רשת Cisco FindIT. RV132W מתאים למשרד ביתי משרדי קטן (SOHO) ולפריסות קטנות יותר עם צורך בעבודה ברשתות וירטואליות פרטיות (VPN).
תיאור
Product Specifications
| Specifications | Description |
| Standards | IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1D, 802.1p, 802.1w (Rapid Spanning Tree), 802.1X (security authentication), 802.1Q (VLAN), 802.11i (Wi-Fi Protected Access [WPA2] security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460), Routing Information Protocol (RIP) v1 (RFC 1058), RIP v2 (RFC 1723) |
Physical Interfaces
| Ports | LAN, WAN, USB, console |
| Switch | Power button (on, off) |
| Buttons | Reset, Wi-Fi (on, off) |
| Cabling type | Category 5e or better |
| LEDs | Power, DSL or WAN, Internet, LAN (ports 1-3), wireless, VPN, USB |
| Operating system | Linux |
Network Capabilities
| Network protocols | Dynamic Host Configuration Protocol (DHCP) server |
| Point-to-Point Protocol over Ethernet (PPPoE) | |
| Point-to-Point Tunneling Protocol (PPTP) | |
| DNS proxy | |
| DHCP relay agent | |
| Internet Group Management Protocol (IGMP) proxy and multicast forwarding | |
| Rapid Spanning Tree Protocol (RSTP) | |
| Dynamic Domain Name System (DynDNS, NOIP) | |
| Network Address Translation (NAT), Port Address Translation (PAT) | |
| One-to-one NAT | |
| Port management | |
| Port mirroring | |
| Software configurable DMZ to any LAN IP address | |
| Session Initiation Protocol (SIP) Application Layer Gateways (ALG) | |
| LAN | 3 10/100 Mbps LAN ports with a managed switch |
| WAN | 1 10/100 Mbps FE WAN port |
| WAN | 1 ADSL2+ |
| WLAN | Built-in high-speed 802.11n wireless access point |
| Routing protocols | Static routing
Dynamic routing RIP v1 and v2 Inter-VLAN routing |
| Network Address Translation (NAT) | Port Address Translation (PAT), Network Address Port Translation (NAPT) protocol |
| VLAN support | Port-based and 802.1Q tag-based VLANs |
| Number of VLANs | 6 active VLANs (2-4094 range) |
| IPv6 | Dual-stack IPv4 and IPv6
6rd Stateless address auto-configuration DHCPv6 server for IPv6 Clients on a LAN DHCPv6 client for WAN connectivity Internet Control Message Protocol (ICMP) v6 Static IPv6 routing Dynamic IPv6 routing with RIPng |
| Network edge (DMZ) | Software-configurable to any LAN IP address |
| Layer 2 | 802.1Q-based VLANs, 6 active VLANs |
Security
| Firewall | Stateful packet inspection (SPI) firewall, port forwarding and triggering, denial-of-service (DoS) prevention, software-based DMZ
DoS attacks prevented: SYN Flood Echo Storm ICMP Flood UDP Flood TCP Flood Block Java, cookies, active-X, HTTP proxy |
| Access control | IP access control lists; MAC-based wireless access control |
| Content filtering | Static URL blocking or keyword blocking |
| Secure management | HTTPS, username and password complexity |
| Wi-Fi Protected Setup (WPS) | WPS |
| User privileges | 2 levels of access: admin and guest |
| QoS | 802.1p port-based priority on LAN ports, application-based priority on WAN ports
4 queues Differentiated Services Code Point (DSCP) support Class of Service (CoS) Bandwidth management for service prioritization |
Performance
| NAT throughput | 75 Mbps (Ethernet WAN) |
| Concurrent sessions | 2000 |
| IPsec VPN throughput (3DES, AES) | 3 Mbps |
Configuration
| Web user interface | Simple, browser-based configuration (HTTP, HTTPS) |
| Command-line interface (CLI) | Command line using SSH |
| Management | |
| Web user interface | Simple, browser-based configuration (HTTP, HTTPS) |
| CLI | Command line using SSH |
| Management protocols | Web browser, Bonjour, Universal Plug and Play (UPnP) |
| Event logging | Local, syslog, email alerts |
| Network diagnostics | Ping, Traceroute, DNS lookup, and port mirror |
| Upgradability | Firmware-upgradable through a web browser, imported or exported configuration file |
| System time | Supports NTP, daylight savings, manual entry |
| Languages | GUI supports English |
Wireless
| Radio and modulation type | 802.11b: direct sequence spread spectrum (DSSS), 802.11g: orthogonal frequency division multiplexing (OFDM), 802.11n: OFDM |
| WLAN | 2.4 GHz IEEE 802.11n standard-based access point with 802.11b/g compatibility |
| Operating channels | 11 North America, 13 most of Europe, auto-channels selection |
| Wireless isolation | Wireless isolation between clients |
| Internal antennas | 2 |
| Antenna gain in dBi | 3 dBi |
| Transmit power | 802.11b: 17 dBm +/- 2.5 dBm; 802.11g: 15 dBm +/- 2.5 dBm; 802.11n: 15 dBm +/- 2.5 dBm |
| Receiver sensitivity | -85 dBm at 11 Mbps, -73 dBm at 54 Mbps, -68 dBm at mcs15, HT20, -65 dBm at mcs15, HT40 |
| Radio frequency | Single-band, works on 2.4 GHz |
| Active WLAN clients | Supports up to 50 concurrent clients |
| Multiple SSIDs | Supports multiple Service Set Identifiers (SSIDs), up to 4 separate virtual networks |
| Wireless VLAN map | Supports SSID to VLAN mapping with wireless client isolation |
| WLAN security | Wired Equivalent Privacy (WEP), WPA, WPA2-PSK, WPA2-ENT, 802.11i |
| Wi-Fi Multimedia (WMM) | WMM, WMM power save (WMM-PS) |
Environmental
| Power | 12V 1A |
| Certifications | FCC, CE, IC, Wi-Fi |
| Operating temperature | 0° to 40°C (32° to 104°F) |
| Storage temperature | -20° to 70°C (-4° to 158°F) |
| Operating humidity | 10% to 85% non-condensing |
